Analog Out NOT PWM from Arduino clone

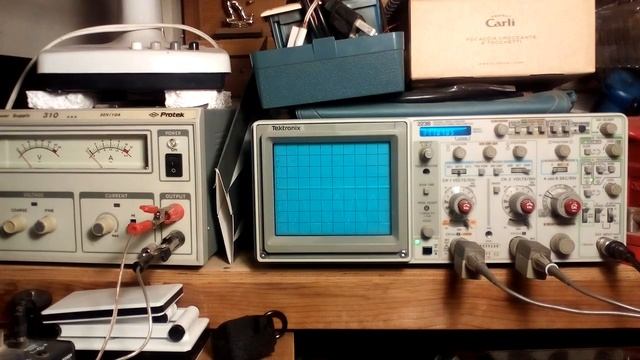

This video shows how to create a steady voltage corresponding to a digital number using the shiftOut command and an R2R ladder.
The advantage is that no further processor resouces are required to maintain the PWM timing so there arent any other interactions with interrupttimersetc.
Also new outputs can be produced at the speed of the command which is significantly faster than the PWMs repetition rate. Categories: electronicstechnologyAnalog-to-Digital conversionPulse width modulationserial-to-parallel conversionArduino
