How to draw PID of PSA Nitrogen Generator Plant I Cryogenic Nitrogen Plant

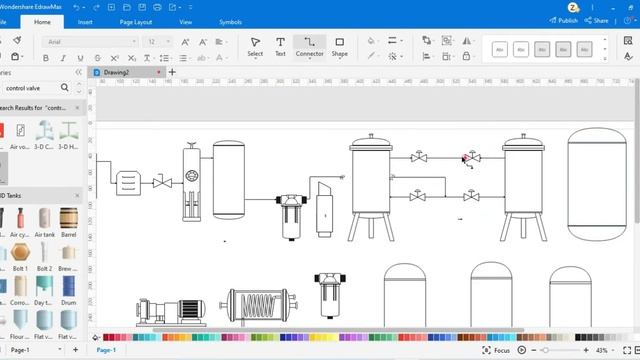

①EdrawMax free download now: ②Get started with professional PID templates! Click: ③Why EdrawMax to draw PID? Find in: Here in this video I explain the PSA Nitrogen generator complete layout PID using EdrawMax.
PSA Generator you will get 99.99 pure nitrogen for medical purposes.
Easy to use for critical processes working principle is discussed below. Working Principle of PSA Generator...... The working principle of a PSA nitrogen generator is that under high pressures nitrogen gas exhibits a strong affinity for adsorbent media such as Zeolite or Granular activated carbon GAC.
Moreover various gases can be absorbed from a mixture at different rates depending on the amount of pressure applied.
When the pressure is lowered the gas is desorbed. Purpose of PSA Generator..... A typical PSA generator set-up comprises two towers one for absorption and the other for regeneration.
Air coming from a compressor enters the absorption tower and contacts the adsorbent which inhibits the nitrogen gas and allows oxygen carbon dioxide water molecules and impurities to pass through.
To recover the absorbed N2 we simply reduce the pressure.
At any given time while the adsorption tower is separating the gas the other is in regeneration mode. Application.... PSA type nitrogen generators are utilized extensively in food and beverage packaging electronics manufacturing chemical industries medical facilities wastewater treatment plants and more to separate high-purity nitrogen gas from a compressed air stream. Purity of Nitrogen.... Nitrogen purity using the PSA technique can be up to 99.999 depending on the efficiency of the adsorbent and the reliability of the overall system. ---------------------------------------------- SOCIALISE WITH FODIC FACEBOOK: LINKEDIN: INSTAGRAM: FOR MORE VIDEOS: HIRE ME ON FIVERR: PINTEREST: Links - MUST WATCH!! EdrawMax Knowledge Videos How Oxygen is made? Working : Control Valve working Basics: Boiler working Basics: Types of Pressure Guages: Hard water vs Soft water: Pump types with Animation: Softener Plant working Animation: Cooling : Types of Cooling Towers: pH Controller Working: EdrawMaxReviews PSAGenerator Nitrogenplant ManufacturingprocessofNitrogen
