FOR SALE Steam Engine Boiler Pump Whistle Gauge Off Grid Live Steam Engine

FOR SALE STEAM BOILER Call me 206 948 0770 Ross My email address is anacortessteamgmail.com You can find my listing on ebay or you can buy direct from me and save 10.
Search steam boiler off grid Free Shipping using Fastenal freight from the west coast to Montana and Colorado. For all you guys out there who have 4 to 5 hp.
steam engines but cant run them on steam this is the boiler for you!! This is my next fire-tube boiler.
It includes a brand new style of firebox with the ash pan built into it.
It is brand new and weighs around 500 lbs.
It measures 80 high to the top of the stack x 24 square at the base.
The boiler itself is 20 dia.
x 32 tall made of 38 steel.
The pop-off valve is set at 100 lbs.
The boiler has twenty-two 1-12 dia.
copper tubes rolled in that are 29 long.

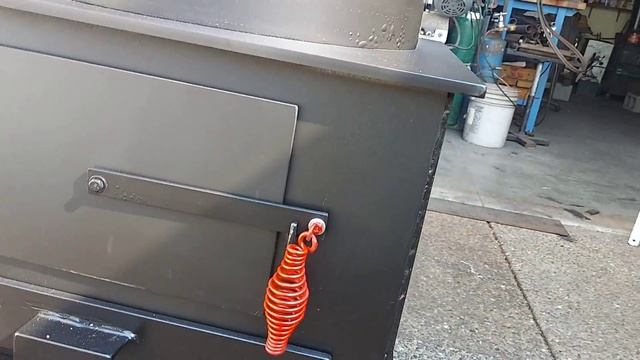

The firebox is 22 x 22 x 14 tall with plenty of room for large pieces of wood or lots of coal.
The ash pan is built into the base.
A feature on this boiler is the the blower ring.
With the addition of this item the draft is increased by ten times.
The amount of air moving through the fire is amazing.
It also includes a NEW AC electric pump.
This boiler will supply enough steam for a 5-6 Hp.
engine. A boiler of this size would cost in the 12000 range from a boiler shop and that is just for the boiler -- not including the boiler feed pump water sight-glass tricocks antique brass whistle pop-off valve and early 1900s pressure gauge. I do pressure test each boiler I have built to 250 lbs.
and have sold over 100 boilers with no problems.
I have been a welder for 48 years.
They are all equipped with steam pressure relief valves.
I can install valves to go off at 90 to 150 lbs.
I have owned 3 one hundred year old antique boilers.
They all were built with 14 steel.
My boilers are constructed with 38 steel and have copper tubes rolled in.
They are built to last over 100 years.
They will outlast the owners life time! The lifting table is not included.
