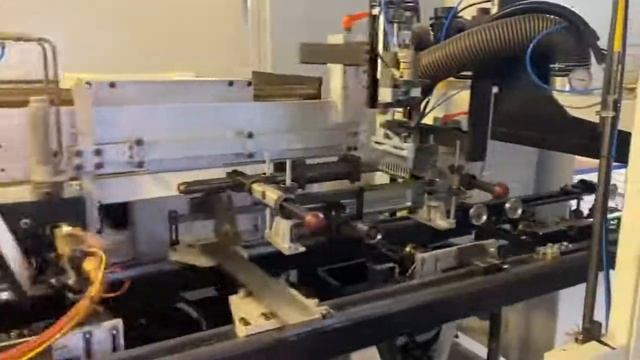

Kammann K14C Screen printing machine

Used and refurbished screen printing machine Manufacturer: Kammann Type: K14C 1-color Control: Siemens S7 1200 PLC incl.
Touch display Chain infeed conveyor, pre-treatment, UV lamp and round printing device Performance: 3300 pieces / h Round pressure: diameter 120mm in the segment, diameter 90mm all around Flat and oval printing: length: 50-200mm Technical Data: Machine Dimensions Length: approx.
4000mm Width: approx.
2000mm Height: approx.
2330mm Weight: approx.
2500kg Output: max.
3300 cycles/h Article dimensions: Round printing: ø max.
120mm segment print max.90mm all round printing on 360 ° screen stroke = 360mm Flat printing: length: 50-200mm width: 30-160mm height: 20-100mm Oval printing: length: 50-200mm Width: 30-160mm max. Height: 20-60mm max. Radius: 15-210mm min. Air consumption: approx.
200 NL/min connection pressure approx.
6bar Gas consumption: for pre-treatment with burner 100mm propane gas approx.
0,21 m3/h natural gas approx.
0,56 m3/h Electrical connection: 220V/ 50 Hz, 3 phases Main drive: 4kW motor REBUILT, FUNCTIONALLY TESTED AND READY for IMMEDIATE USE
